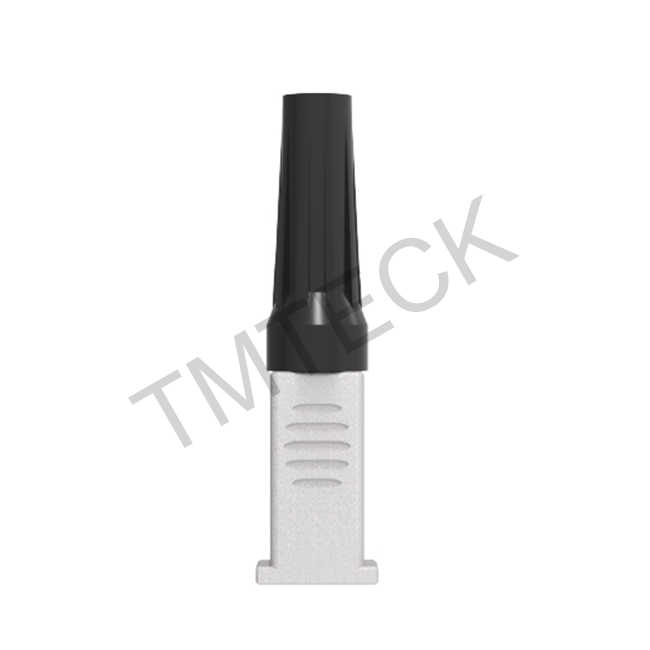

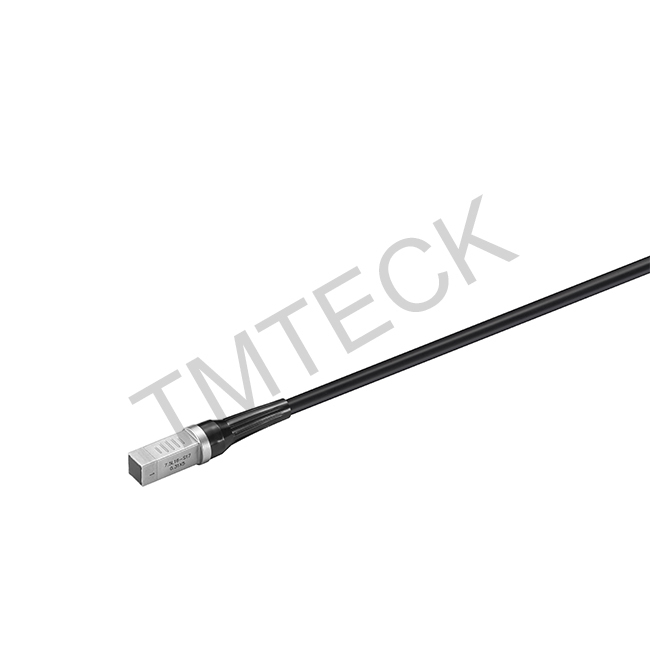

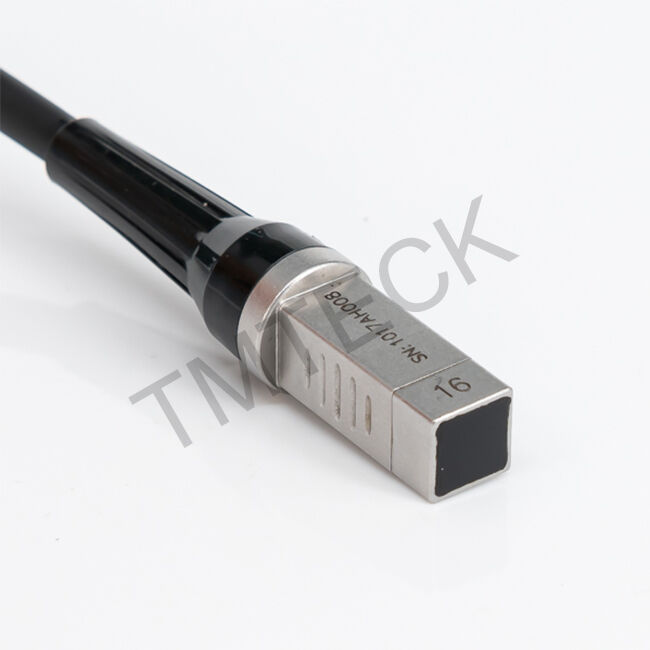

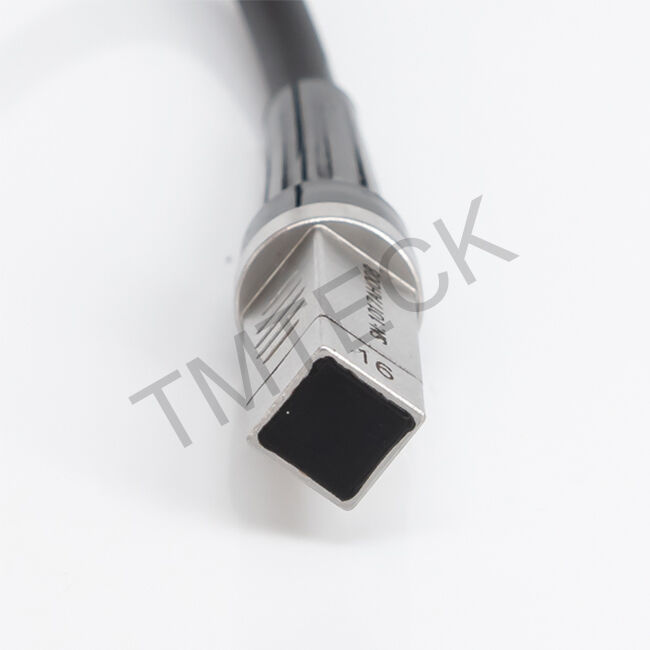

Small-footprint Probe: Smaller size probe with case dimension minimum to 0.31x0.31x0.91 inch, widely used in the aviation field, or some small parts.
Advantages
1.High compatibility, can be compatible with most phased array flaw detection units.
2. High Performance: Good Pk-to-Pk Sensitivity and SNR, quick to detect and locate defects.
3.Smaller in Size: Easy to inspect in extremely small space.
4.Wide Application: Widely used in castings, forgings, pipes, tubes, and machined and structural components for cracks and weld defects.

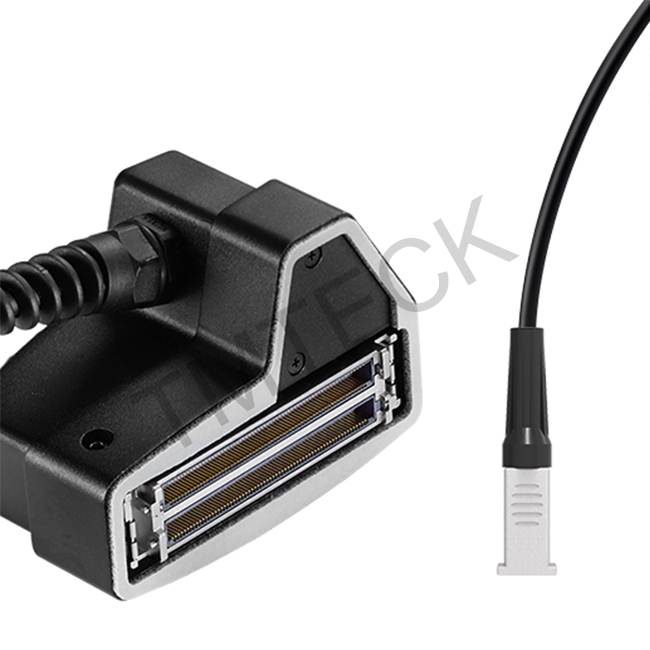

5.Multiple cable connection type: Top cable connection or side cable connection.
Applications
1.Aircraft scratches, rotors, hubs, etc.
2.Detect and quantify defects
3.Inspect castings, forgings, pipes, tubes, and machined and structural components
4.Cracks and weld defects
Probe Specification
Probe
Series |
Model |
Compatible
Model
|
Element
Shape |
Freq (MHz) |
E-Nos |
Pitch
(mm) |
Active
Aperture
(mm)
|
Elev.(mm) |
Size(LxWxH)
|
| TS17/A00 |
5L16-0.31x5 |
5L16-4.96x5 |
Linear |
5 |
16 |
0.31 |
5.0 |
5.0 |
8x8x23
(mm)
0.31x0.31x0.91
(in)
|
| 7.5L16-0.31x5 |
7.5L16-4.96x5 |
Linear |
7.5 |
16 |
0.31 |
5.0 |
5.0 |
| 10L16-0.31x5 |
10L16-4.96x5 |
Linear |
10 |
16 |
0.31 |
5.0 |
5.0 |
*The standard cable length is 2.5m/8.2ft. The phased probe can be customized, including frequency, element number and pitch, aperture, etc.
Wedge Specification
| Probe Series |
Model |
Compatible Model |
Element Shape |
Size(LxWxH) |
| TS17/A00 |
N0L-5MM |
0°LW |
-30°~30° |
LxWxH:8x8x23(mm)
LxWxH : 0.31x0.31x0.91 (in)
|
| N0L-20MM |
0°LW |
-30°~30° |
| N45L |
45°LW |
40°~70° |
| N60L |
60°LW |
40°~70° |
| N45S |
45°SW |
40°~70° |
| N60S |
60°SW |
40°~70° |
| N60S-IHC |
60°SW |
40°~70° |
| N60S-IHC-AOD100 |
60°SW |
40°~70° |
Quick Details
Model Number:5L16-0.31x5-TS17
Element:16
Size:LxWxH8x8x23(mm) 0.31x0.31x0.91(in)
Warranty:12 Months
Case:Stainless steel
Application:Aircraft scratches, rotors, hubs, etc.
Customization:yes
Type:Phased array probe
Element Shape:Linear
Color:Silver
MOQ:1
