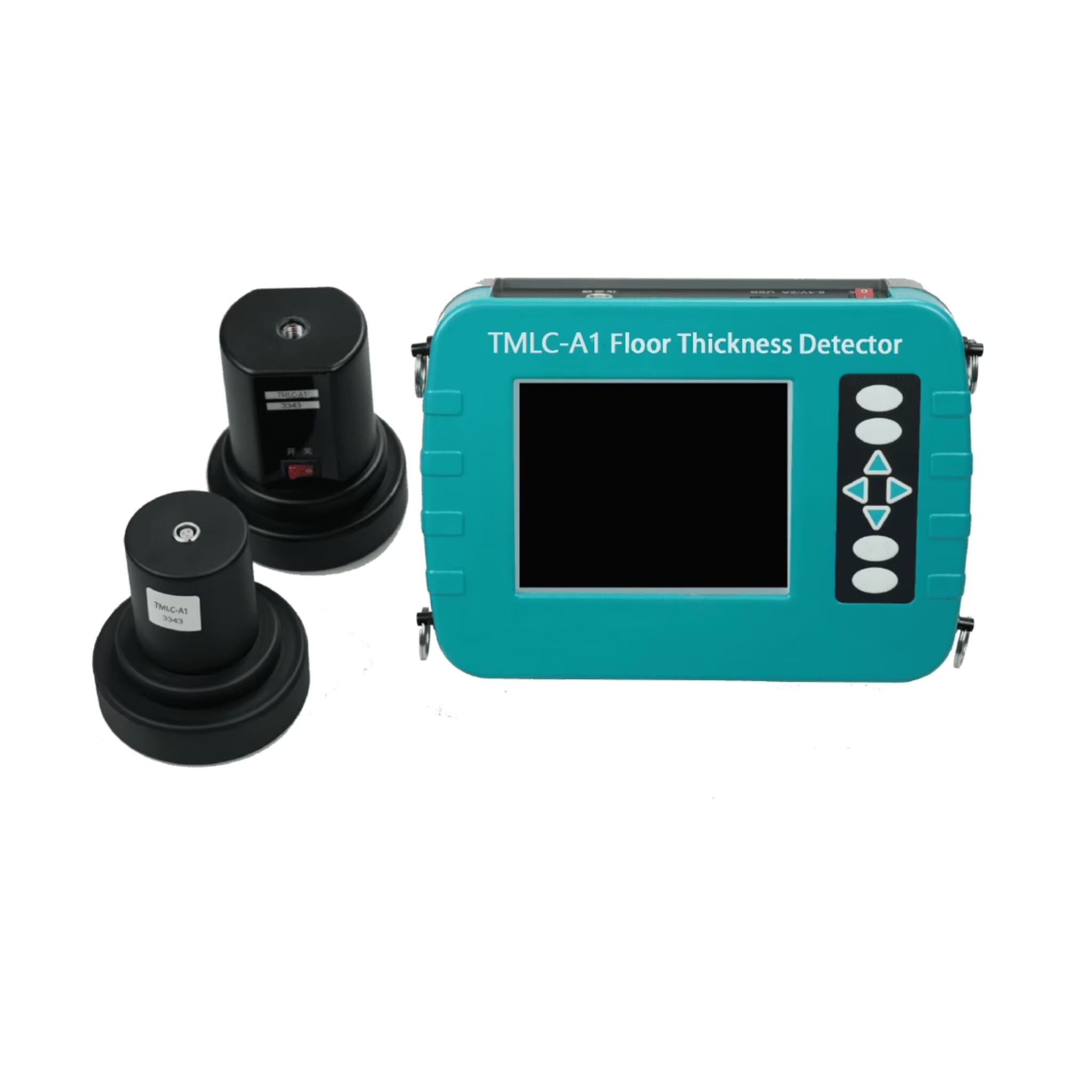

TMLC-A1 Floor Thickness Tester with 40~820mm Test Range, Waterproof Design, and 30,000 Points Storage

The TMLC-A1 floor thickness tester is a portable instrument suitable for testing the thickness of concrete or other non-magnetic media by non-destructive testing methods. When in use, the transmitting probe and the receiving probe are placed on the two opposite test surfaces of the floor to transmit and receive electromagnetic signals respectively. The instrument tests the floor thickness value according to the received signal strength.

• GB 50204-2015 "Concrete Structure Engineering Construction Quality Acceptance Code"
• JJF 1224-2009 "Calibration Specification for Steel Bar Cover and Floor Slab Thickness Measuring Instruments"

• Wireless cloud transmission function (optional)
• Adopt triple-proof shell design, waterproof, dustproof and shockproof
• The probe and the main unit are designed separately, which is convenient for operators to measure and use on site
• Store floor slab thickness measurements by component
• Easy to use, with complete measurement, storage and analysis functions
• The stored data is transferred to the computer via the USB interface
• Use Windows software to analyze data and generate test reports
• Free switching between Chinese and English interfaces makes it more convenient and faster for foreign customers to use
